Automatic Mobile Phone Film Production Line
Automatic Mobile Phone Film Production Line
Introduction

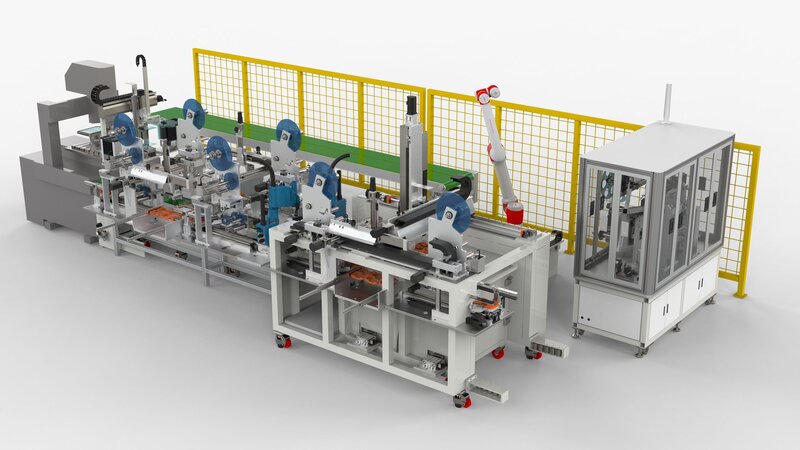

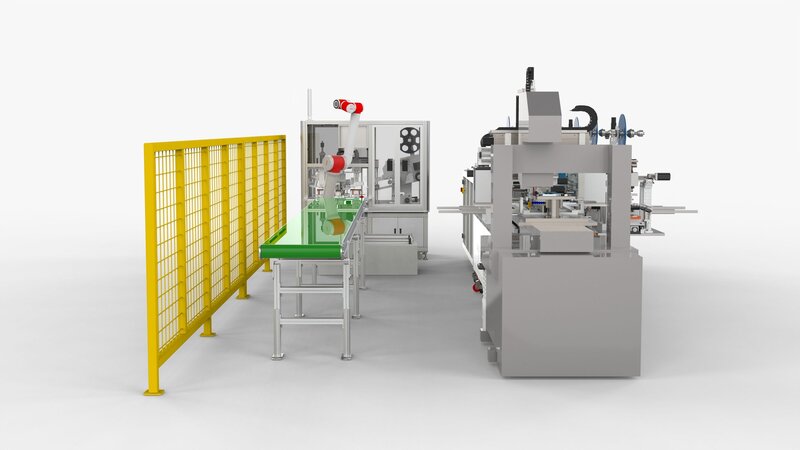

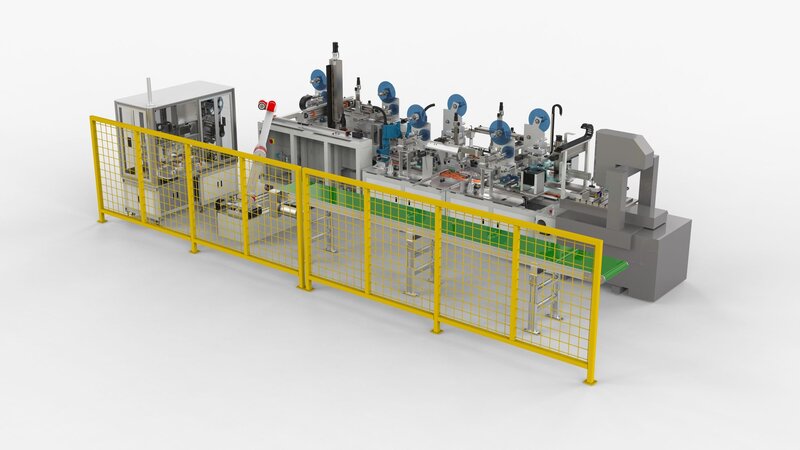

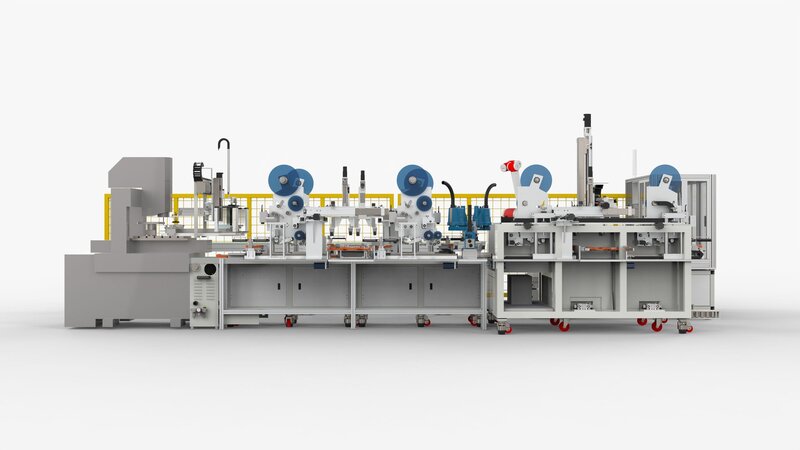

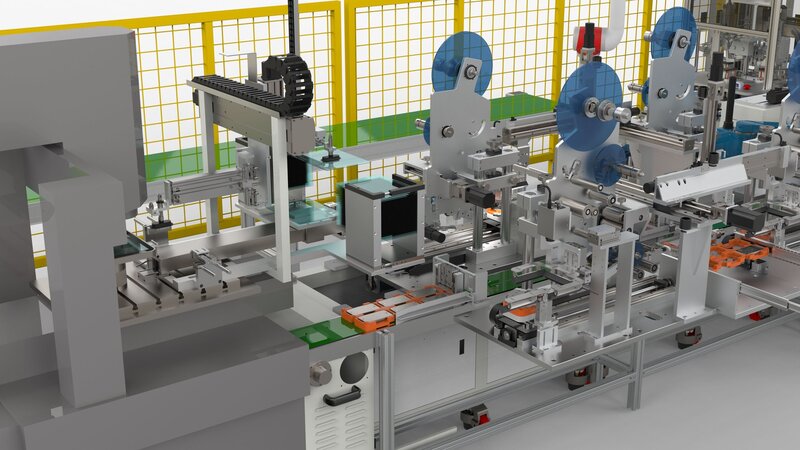

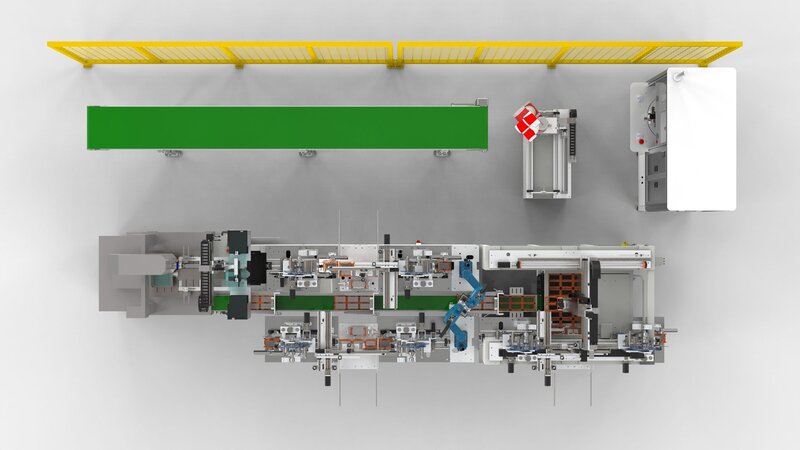

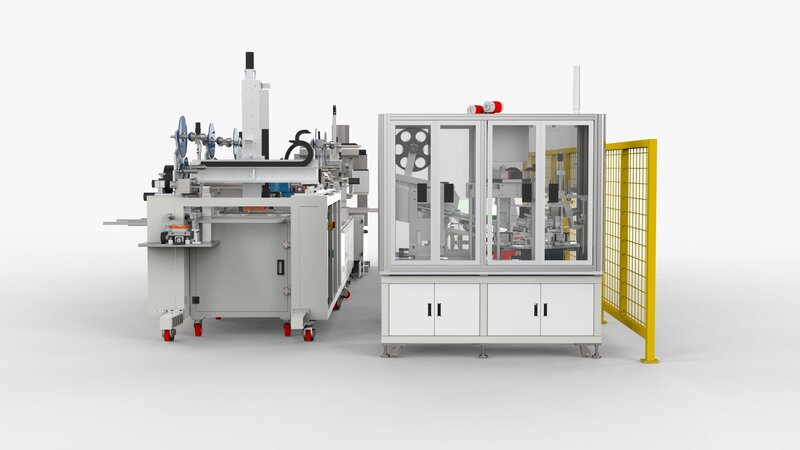

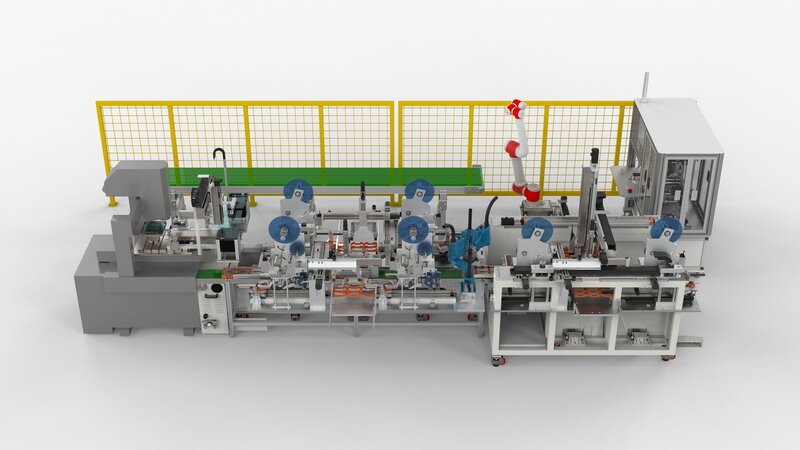

The drawing is the design of the automatic mobile phone film production line: the workstation where the new machine in the production line sticks the protective film, the machine is transported to the manipulator manipulator, and the machine is put into the filming tooling conveyor line for filming, and after completion, the manipulator will take it out and put it into the return conveyor. The drawing format is xt neutral format, which can be disassembled.
File Formats
– SolidWorks 2020 | Keyshot 10
– STEP (Standard for the Exchange of Product Data)
– IGES (Initial Graphics Exchange Specification)
– STL (Standard Tessellation Language )
– OBJ (Object Files)
Geometry
– Polygons: 18,803,638
– Vertice: 56,410,914
