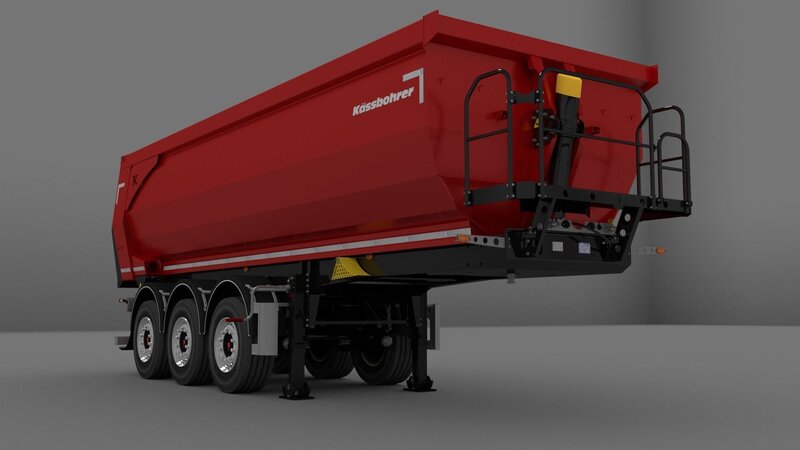

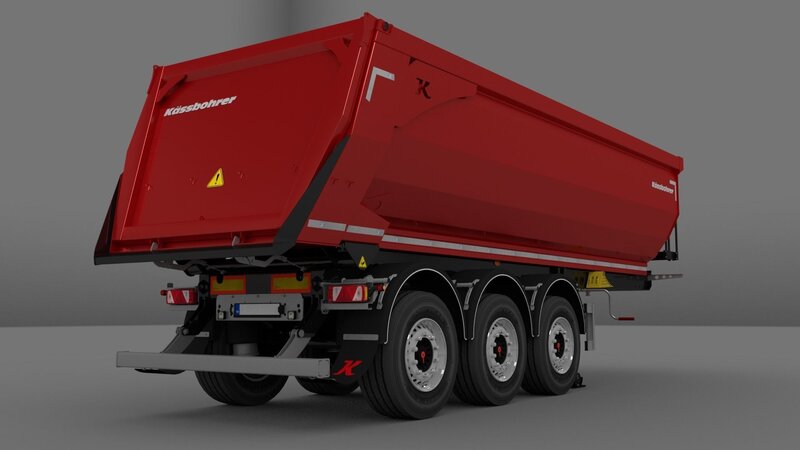

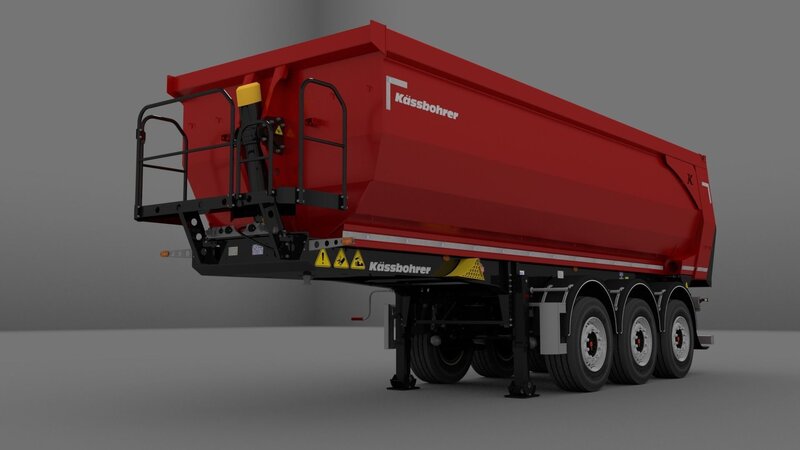

Kassbohrer Dumper - Tipper Trailer Low-poly 3D model

TECNICAL DATA Volume27,0 m3 Tare Weight ±%36.155 kg Wheelbase (Wb)4.700 mm Fifth Wheel Height (H5)1.220 mm Vehicle Height (H)3.130 mm Body Length (A )8.300 Body Inner Height (IH)1.690 mm Body Height (Bh)1.700 mm TECNICAL INFORMATION ChassisMade of high quality and high strength S700 MC steel, in compliance with Standard ISO 1726-2 and ISO 1726; made of two welded long itudinal beams in I form with cross beams at needed distances. Reinforced with KTL protection with Kässbohrer expertise. Brake SystemDual circuit electro-pneumatic WABCO brand EBS 2S/2M brake system with anti-lock (ABS) and tilt control system (RSS) in compliance with Regulation UN ECE R13 Electric SystemAspöck Europoint III lightning installation with 24V LED side position lamp and 2 x 7 and 1 x 15 pin sockets, in compliance with Regulation UN ECE R48 and ADR Legislation AxlesBPW AL II HD air suspension and drum brake axle with 9 ton capacity each BodyBody is made of Hardox450 and TUF500 materials for maximum abrasiveness and impact resistance. Hydraulic SystemHYVA branded 5 stage cylinder that can be lowered/raised with an air handle is included. TECNICAL CAPACITIES Axle Load27.000 kg King Pin Capacity12.000 kg Total Weight39.000 kg
