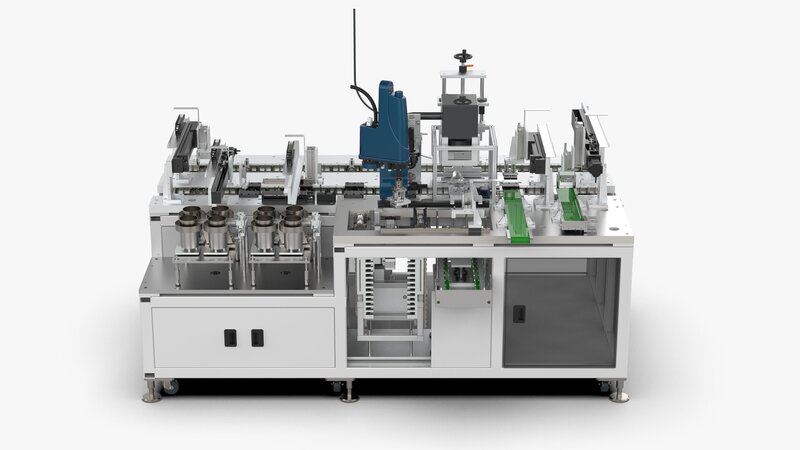

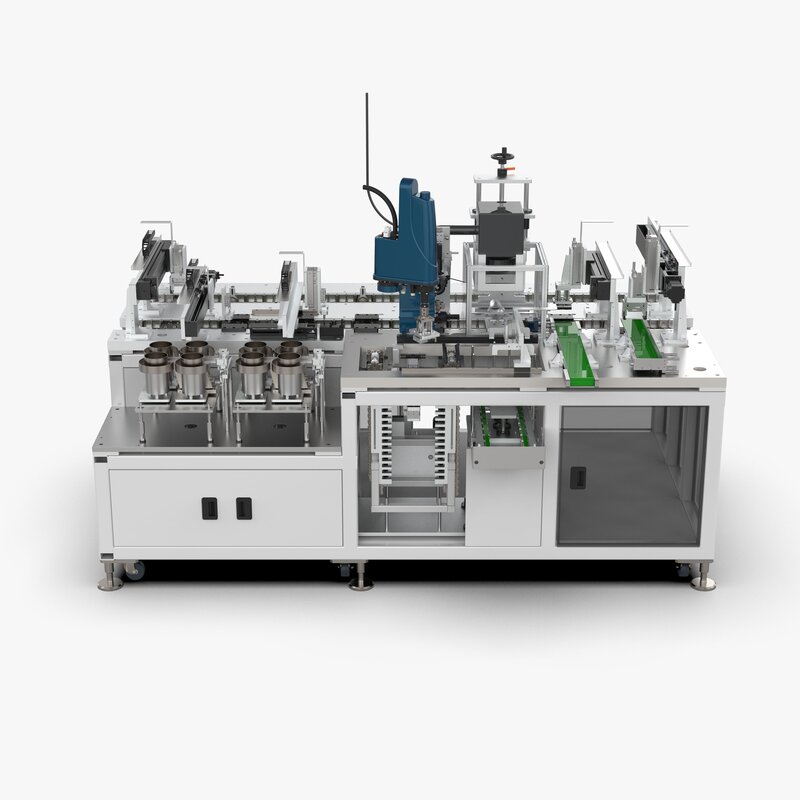

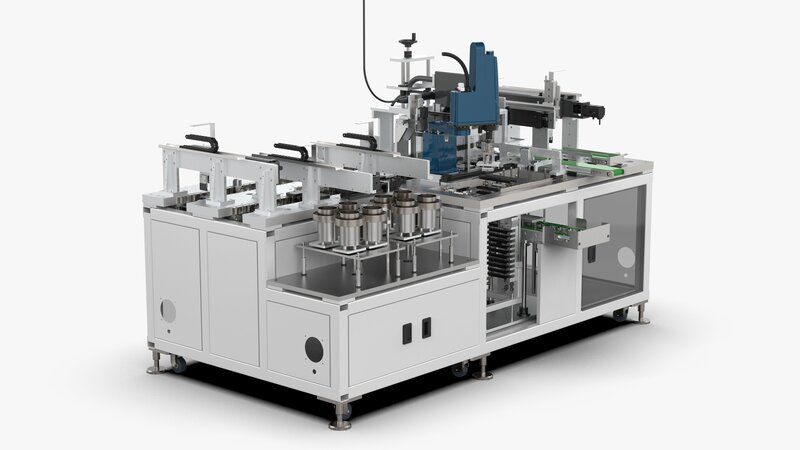

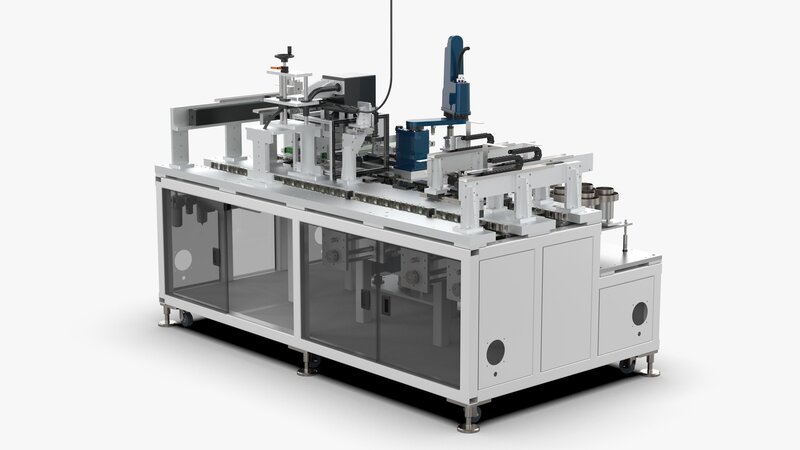

Automatic Radium Welding Loading and Unloading Machine 3D model
Automatic Radium Welding Loading and Unloading Machine
Introduction
The automatic radium welding loading and unloading equipment adopts the double vibrating plate feeding method, and the vibrating plate feeding is switched according to different production needs. The overall adopts the back-shaped assembly line transmission method, and the empty Tray is connected to the upstream equipment for automatic feeding, and the robot grabs and completes the radium welding of the product. After the palletizing, the palletizing is processed by the lifting bin method, and the final result is detected by CCD. The equipment in production and use is running stably.
File Formats
Geometry
Automatic Radium Welding Loading and Unloading Machine
Introduction
The automatic radium welding loading and unloading equipment adopts the double vibrating plate feeding method, and the vibrating plate feeding is switched according to different production needs. The overall adopts the back-shaped assembly line transmission method, and the empty Tray is connected to the upstream equipment for automatic feeding, and the robot grabs and completes the radium welding of the product. After the palletizing, the palletizing is processed by the lifting bin method, and the final result is detected by CCD. The equipment in production and use is running stably.
File Formats
Geometry
3D Model formats
Format limitations
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)159 MBVersion: 2018Renderer: Mental Ray 3.0
- Stereolithography (.stl)313 MB
- OBJ (.obj, .mtl)512 MB
- STEP (.stp)45.9 MB
- IGES (.ige, .igs, .iges)197 MB
