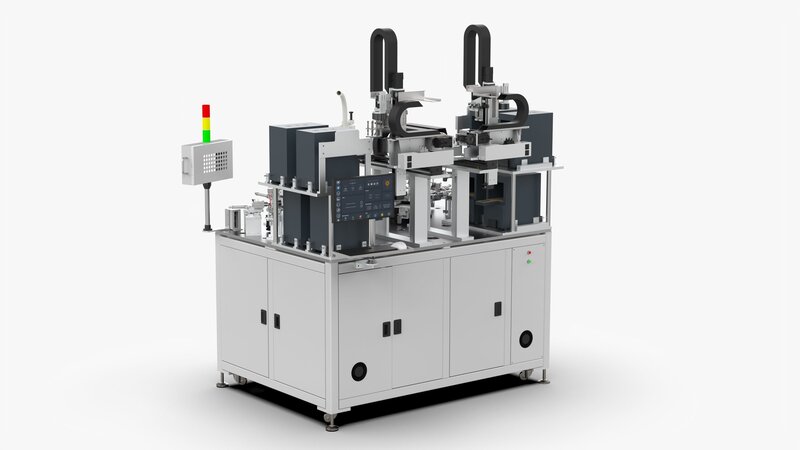

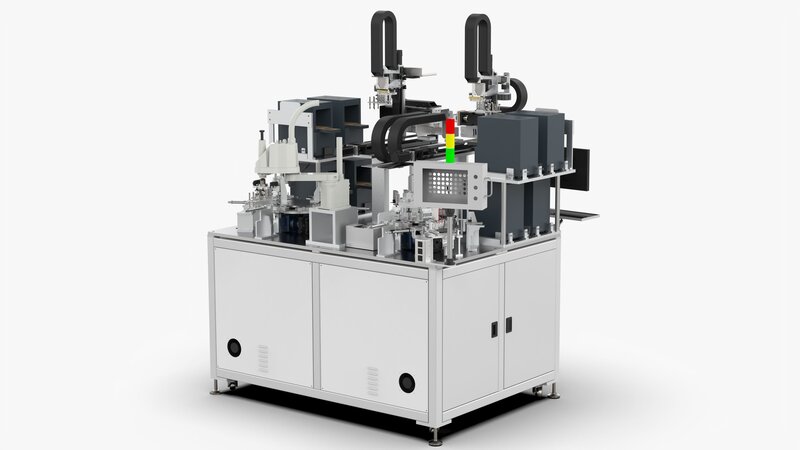

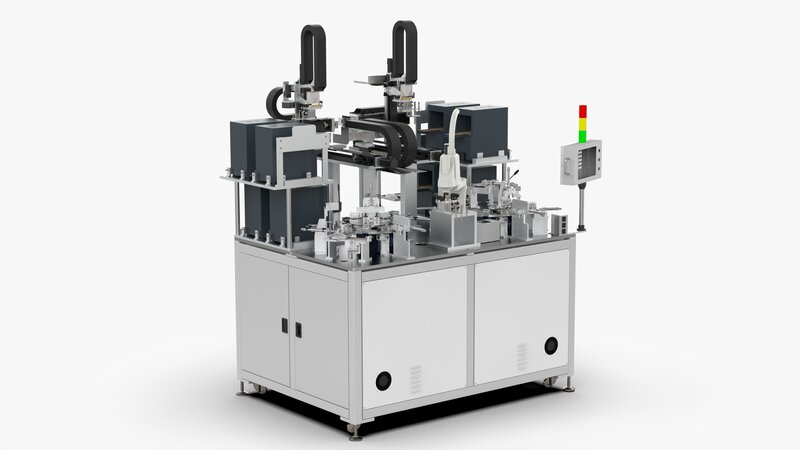

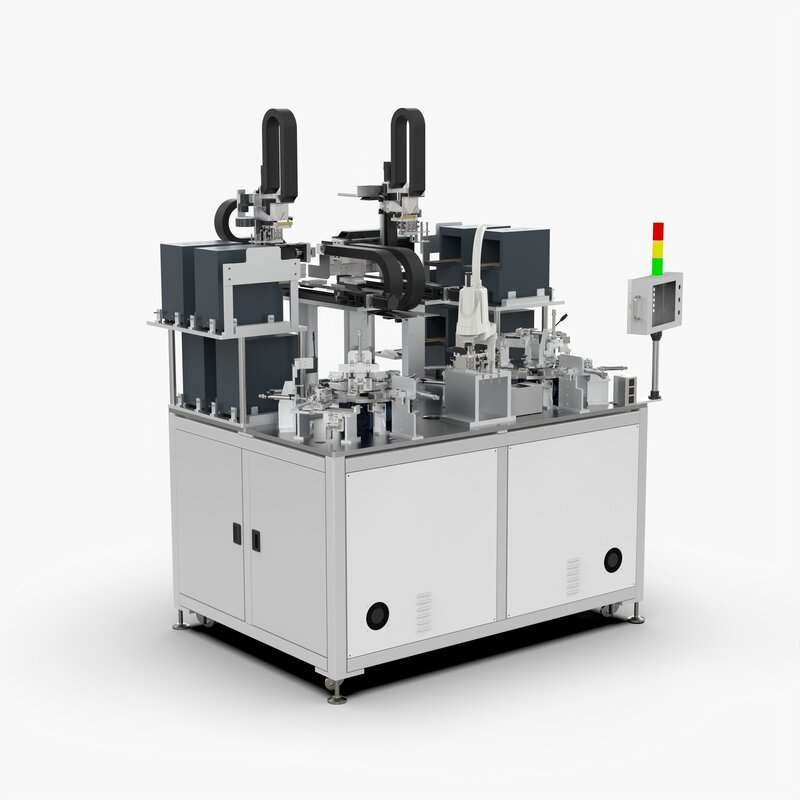

Automatic Mobile Phone Motherboard Testing Machine 3D model
Automatic Mobile Phone Motherboard Plug and Unplug Testing Machine
Introduction
Mobile phone motherboard testing equipment, adopts the method of vacuum adsorption by manipulator, two groups of 6-station turntable test modules on the left and right, plug-in test, straightness test, pressure test, two groups of XYZ plus vacuum adsorption modules grab to In the testing machine, testing such as withstand voltage and power on .
File Formats
Geometry
Automatic Mobile Phone Motherboard Plug and Unplug Testing Machine
Introduction
Mobile phone motherboard testing equipment, adopts the method of vacuum adsorption by manipulator, two groups of 6-station turntable test modules on the left and right, plug-in test, straightness test, pressure test, two groups of XYZ plus vacuum adsorption modules grab to In the testing machine, testing such as withstand voltage and power on .
File Formats
Geometry
3D Model formats
Format limitations
- SolidWorks 2018 (.sldprt, .sldasm, .slddrw)118 MBVersion: 2018Renderer: Mental Ray 3.0
- Stereolithography (.stl)194 MB
- IGES (.ige, .igs, .iges)233 MB
- OBJ (.obj, .mtl)308 MB
- STEP (.stp)60.1 MB
